Future
Nova Core
Nova Core is a custom 16-bit CPU designed and built from scratch in Verilog.
Demo https://zoomwag.github.io/nova-core/
The project is focused on learning how processors work by designing each major component individually and combining them into a complete CPU.

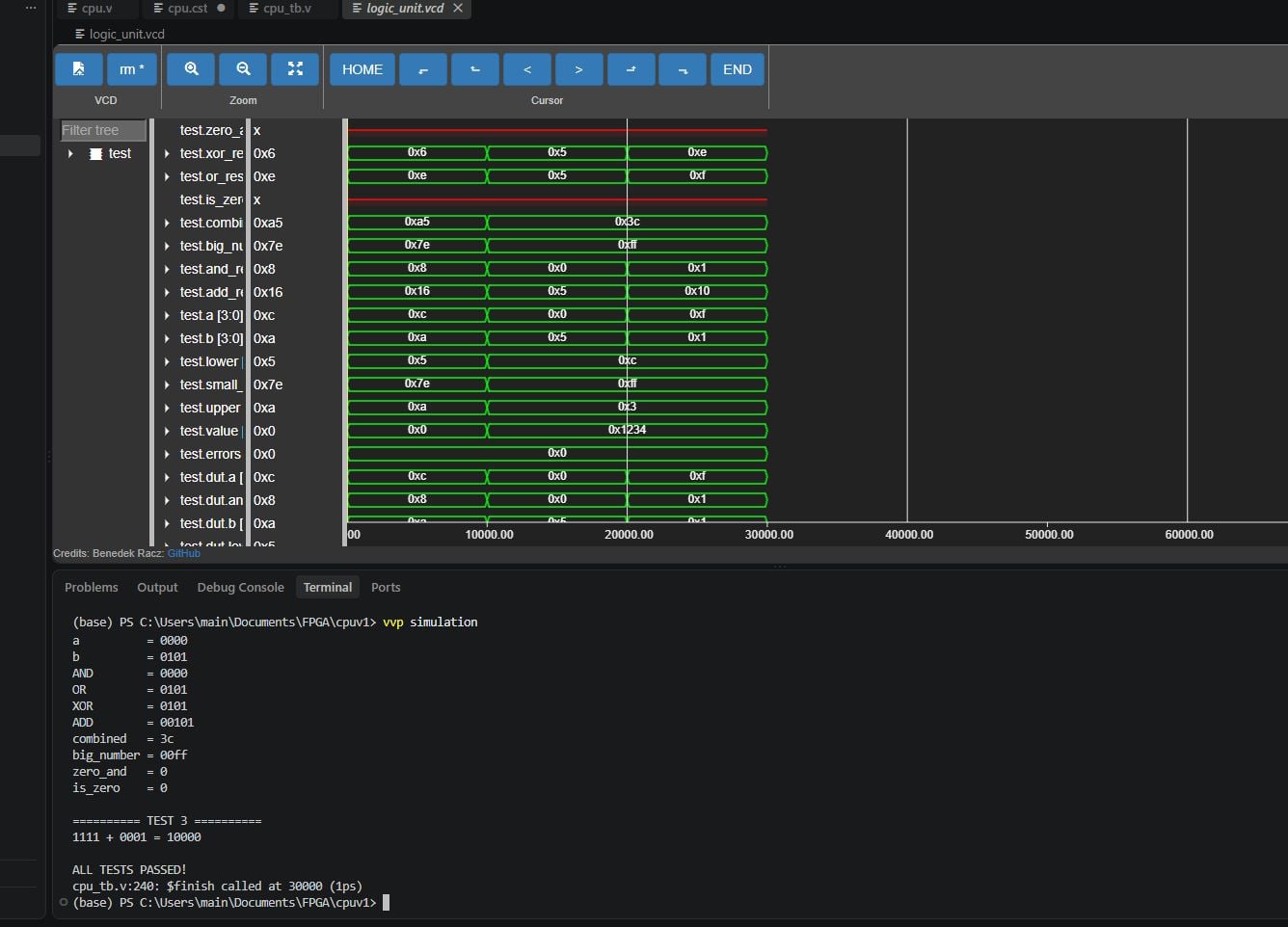

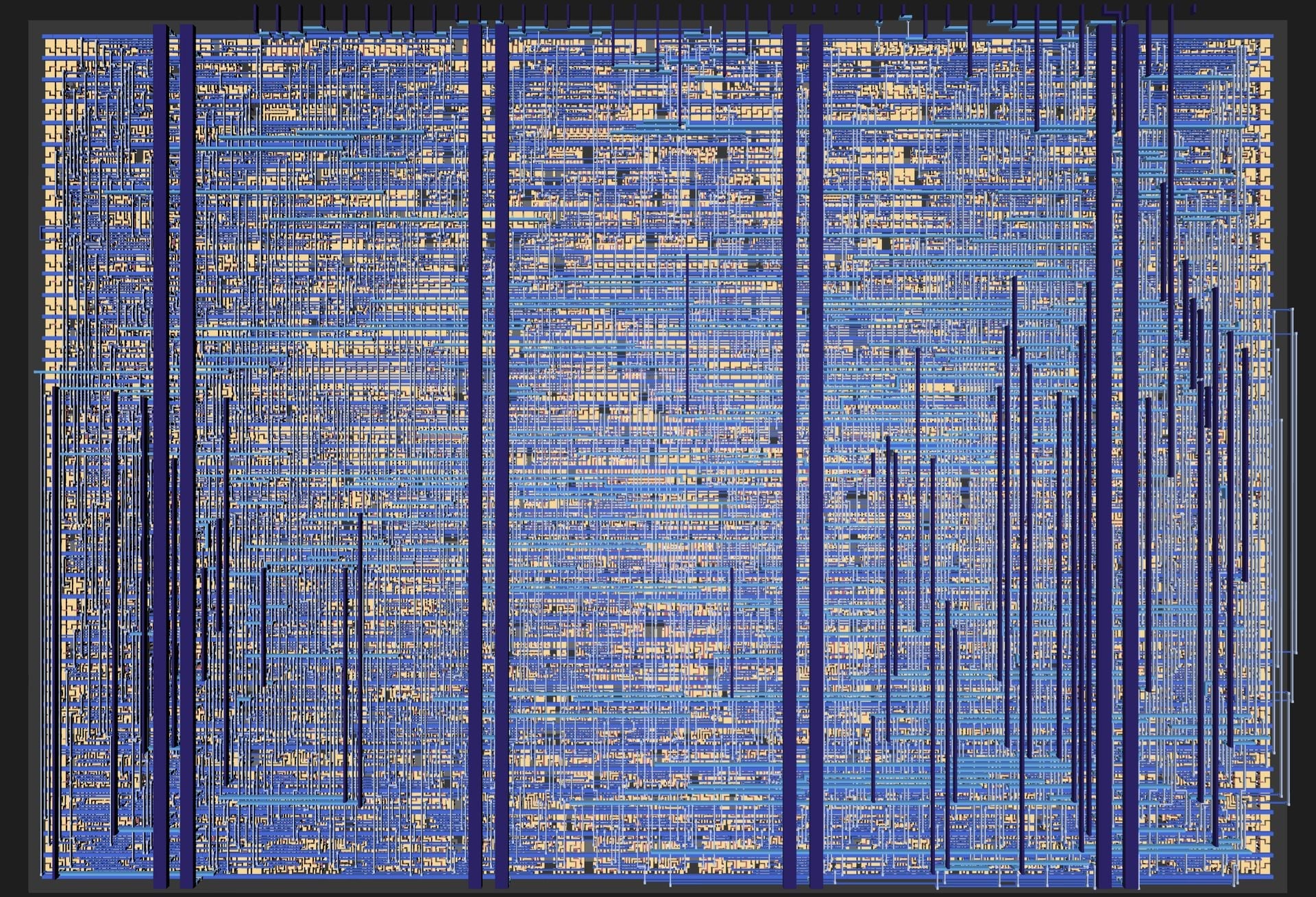

Here are some images of the cpu
Features
- 16-bit CPU architecture
- Custom instruction set
- Custom ALU
- Accumulator-based design
- Program counter
- Instruction register and decoder
- Control unit
- ROM and RAM
- Status flags
- Written entirely in Verilog
NovaCore CPU Instruction Set
Instruction format
Every NovaCore instruction is 16 bits wide:
Bit: 15 12 11 0
┌─────────────────┬─────────────────────────────────┐
│ 4-bit opcode │ 12-bit operand │
└─────────────────┴─────────────────────────────────┘
- The opcode tells the CPU what operation to perform.
- The operand can contain a constant, RAM address, or program address.
- Some instructions do not use the operand.
Opcode table
| Hex opcode | Binary opcode | Instruction | Operand use | Operation | Flags updated |
|---|---|---|---|---|---|
0 | 0000 | NOP | Ignored | Do nothing and continue to the next instruction | None |
1 | 0001 | LDI | operand[7:0] contains an 8-bit constant | Load the constant into the accumulator: ACC = {8'h00, operand[7:0]} | Z, N |
2 | 0010 | LUI | operand[7:0] contains an 8-bit constant | Load the constant into the upper half of the accumulator while keeping the lower half | Z, N |
3 | 0011 | ADDI | operand[7:0] contains an 8-bit constant | Add the constant to the accumulator | Z, C, N |
4 | 0100 | SUBI | operand[7:0] contains an 8-bit constant | Subtract the constant from the accumulator | Z, C, N |
5 | 0101 | ANDI | operand[7:0] contains an 8-bit constant | Perform bitwise AND between the accumulator and the constant | Z, N |
6 | 0110 | ORI | operand[7:0] contains an 8-bit constant | Perform bitwise OR between the accumulator and the constant | Z, N |
7 | 0111 | XORI | operand[7:0] contains an 8-bit constant | Perform bitwise XOR between the accumulator and the constant | Z, N |
8 | 1000 | LOAD | operand[2:0] selects RAM address 0–7 | Load a 16-bit value from RAM into the accumulator | Z, N |
9 | 1001 | STORE | operand[2:0] selects RAM address 0–7 | Store the accumulator in RAM | None |
A | 1010 | JMP | operand[5:0] contains a program address | Jump unconditionally to the selected instruction address | None |
B | 1011 | JZ | operand[5:0] contains a program address | Jump when the zero flag is 1 | None |
C | 1100 | JNZ | operand[5:0] contains a program address | Jump when the zero flag is 0 | None |
D | 1101 | IN | Ignored | Read the 8-bit input port into the lower half of the accumulator | Z, N |
E | 1110 | OUT | Ignored | Copy the accumulator into the 16-bit output register | None |
F | 1111 | HALT | Ignored | Stop instruction execution until the CPU is reset | None |
Detailed instruction behaviour
| Instruction | Behaviour |
|---|---|
NOP | PC = PC + 1 |
LDI | ACC = {8'h00, operand[7:0]} |
LUI | ACC = {operand[7:0], ACC[7:0]} |
ADDI | ACC = ACC + {8'h00, operand[7:0]} |
SUBI | ACC = ACC - {8'h00, operand[7:0]} |
ANDI | ACC = ACC AND {8'h00, operand[7:0]} |
ORI | ACC = ACC OR {8'h00, operand[7:0]} |
XORI | ACC = ACC XOR {8'h00, operand[7:0]} |
LOAD | ACC = RAM[operand[2:0]] |
STORE | RAM[operand[2:0]] = ACC |
JMP | PC = operand[5:0] |
JZ | If Z = 1, set PC = operand[5:0]; otherwise increment PC |
JNZ | If Z = 0, set PC = operand[5:0]; otherwise increment PC |
IN | ACC = {8'h00, input_pins} |
OUT | output_register = ACC |
HALT | halted = 1 |
CPU flags
| Flag | Full name | Meaning |
|---|---|---|
Z | Zero flag | Set to 1 when the new accumulator value is 16'h0000 |
C | Carry flag | Stores the carry-out from arithmetic operations |
N | Negative flag | Copies bit 15 of the new accumulator value |
Machine-code examples
| Assembly instruction | Machine code | Explanation |
|---|---|---|
NOP | 16'h0000 | Do nothing |
LDI 5 | 16'h1005 | Load decimal 5 into the accumulator |
LDI FF | 16'h10FF | Load hexadecimal FF into the accumulator |
LUI AB | 16'h20AB | Load hexadecimal AB into the upper byte |
ADDI 3 | 16'h3003 | Add decimal 3 to the accumulator |
SUBI 1 | 16'h4001 | Subtract decimal 1 from the accumulator |
ANDI 0F | 16'h500F | Keep only the lowest four bits |
ORI 80 | 16'h6080 | Set bit 7 |
XORI FF | 16'h70FF | Toggle the lowest eight bits |
LOAD 2 | 16'h8002 | Load RAM location 2 |
STORE 2 | 16'h9002 | Store the accumulator in RAM location 2 |
JMP 10 | 16'hA00A | Jump to program address decimal 10 |
JZ 4 | 16'hB004 | Jump to address 4 when the zero flag is set |
JNZ 1 | 16'hC001 | Jump to address 1 when the zero flag is clear |
IN | 16'hD000 | Read the external input pins |
OUT | 16'hE000 | Copy the accumulator to the output register |
HALT | 16'hF000 | Stop the CPU |
Example program
This program counts down from 5 to 0:
| Address | Assembly | Machine code | Purpose |
|---|---|---|---|
0 | LDI 5 | 16'h1005 | Start the accumulator at 5 |
1 | OUT | 16'hE000 | Display the current value |
2 | SUBI 1 | 16'h4001 | Subtract 1 |
3 | JNZ 1 | 16'hC001 | Repeat while the result is not zero |
4 | OUT | 16'hE000 | Display the final zero |
5 | HALT | 16'hF000 | Stop the CPU |
CPU specification summary
| Feature | Specification |
|---|---|
| CPU name | Nova Core |
| Architecture | 16-bit accumulator CPU |
| Data width | 16 bits |
| Instruction width | 16 bits |
| Opcode width | 4 bits |
| Operand width | 12 bits |
| Program counter width | 6 bits |
| Program capacity | 64 instructions |
| Data RAM | 8 words of 16 bits |
| External input | 8 bits |
| External output | 16 bits |
| Flags | Zero, carry, negative |
| Number of opcodes | 16 |
| Execution style | One instruction per clock cycle |
| Target platform | Tiny Tapeout |
How it was built
1 devlog, 1 to watch1.2 hours recorded with Lapse.
